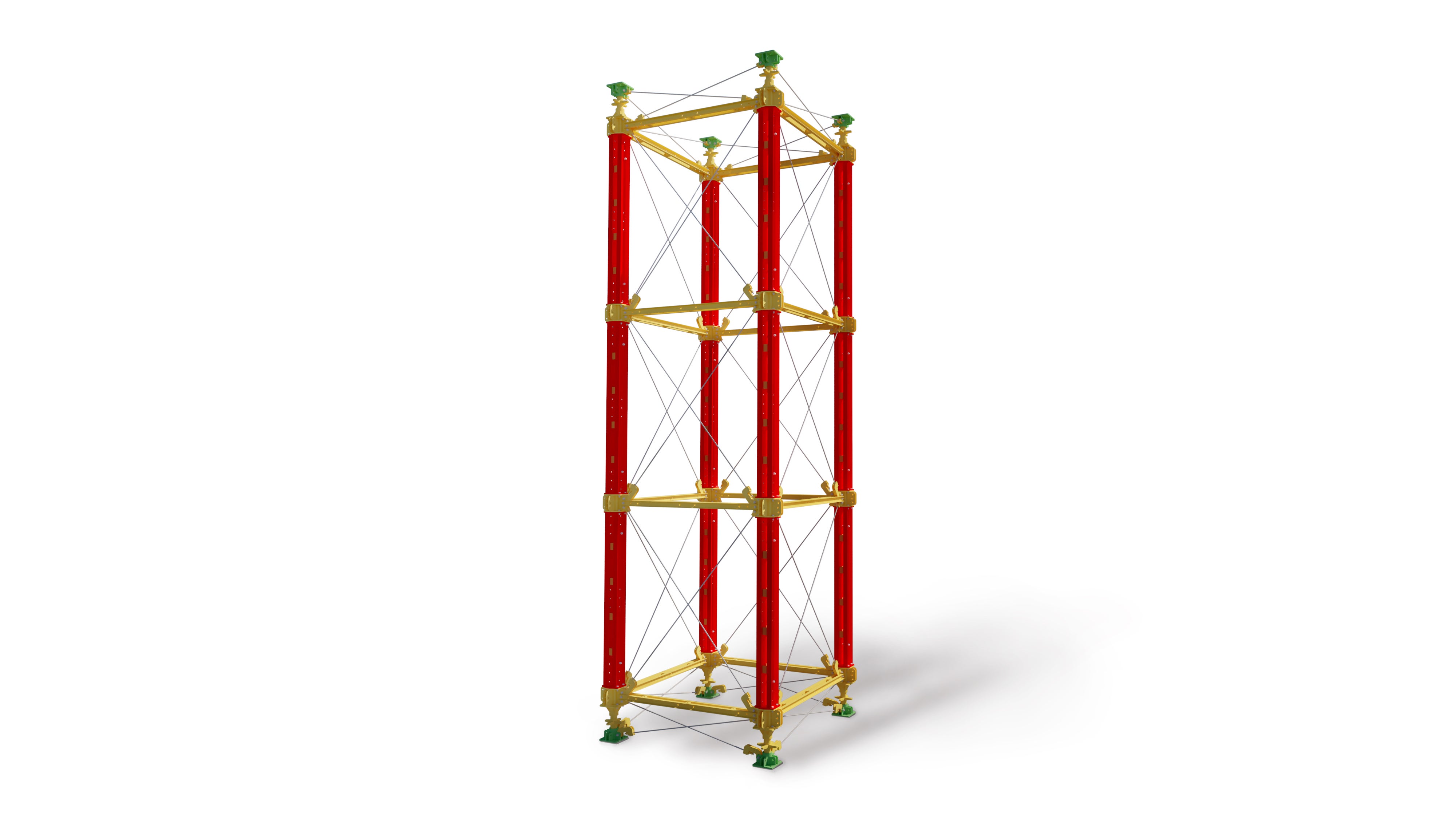

HDS Heavy-Duty Shoring

The Modular 1,000kN System

HDS Shoring is our latest modular system specially designed for pre-cast segmental bridges. It facilitates total cost reductions for heavy duty applications and provides a simple easy use that suit to the required tower height through its Screw Jack and endplate adjustment.

High load-bearing capacity

1,000 kN per leg with a safety factor of 2
Simple Connections

Efficient assembly with only 2 standard connections
Highly versatile

Flexible configuration of horizontals and verticals to facilitate all dimensions
Compatible

Can work with other PERI systems for access and safety requirement

HDS in action

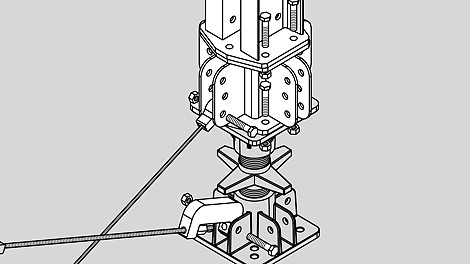

Efficient HDS Connections

Efficient assembly with only 2 standard connections

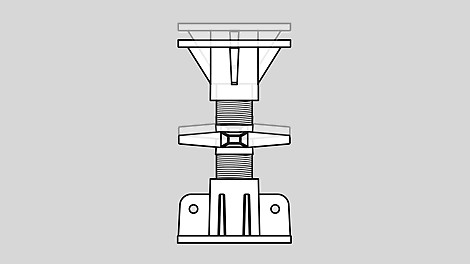

Adjustable Jack with 1,000kN capacity

Extension between 410 - 620mm is possible to simplify the striking process

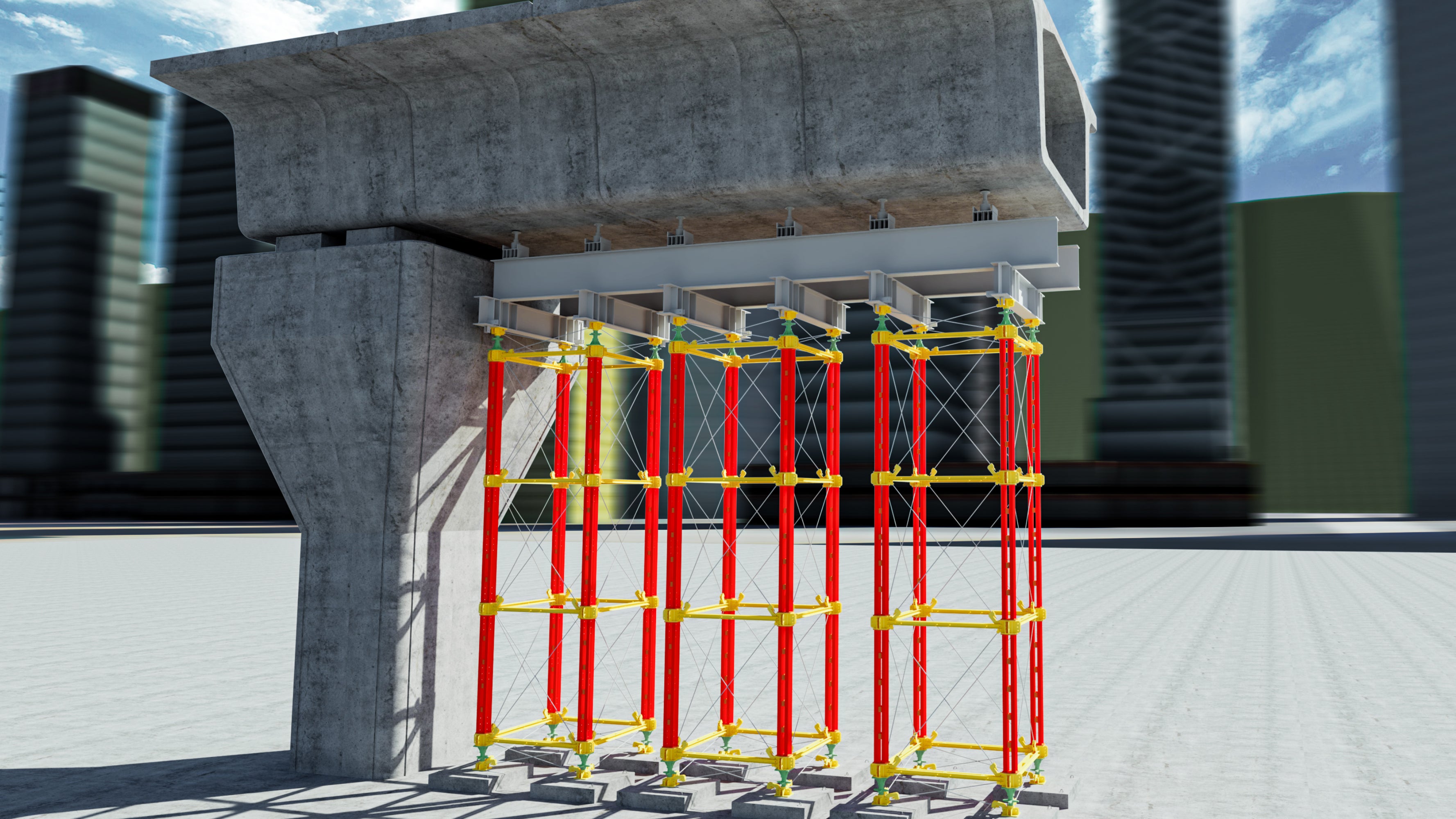

Pre-cast bridge construction

A very efficient option for the construction of pre-cast segmental bridges
PERI HDS System for Pre-Cast Bridges
With only five components, HDS can largely reduce the total cost of heavy-duty applications.
